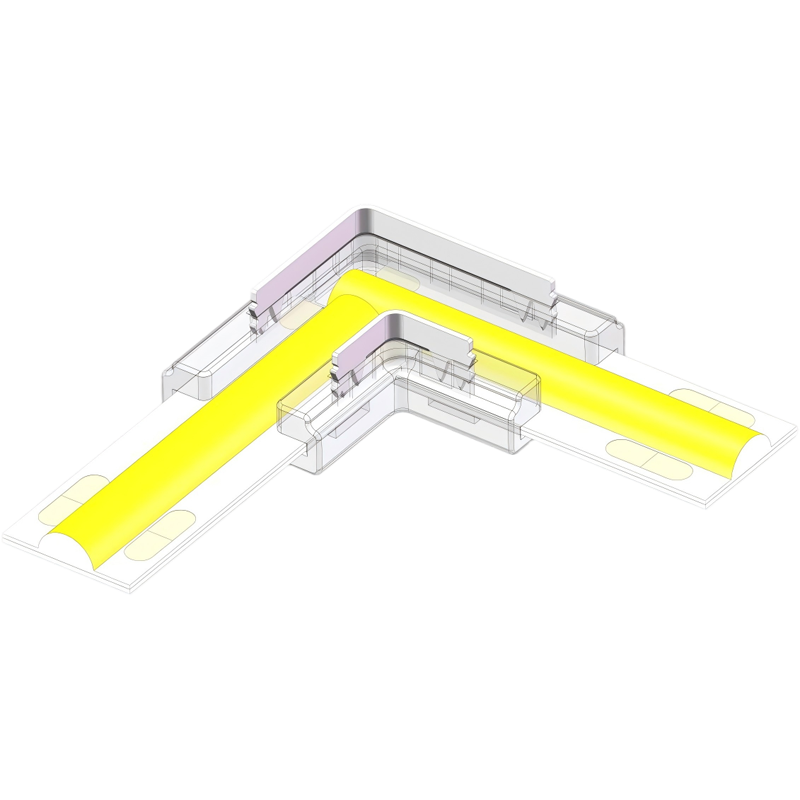

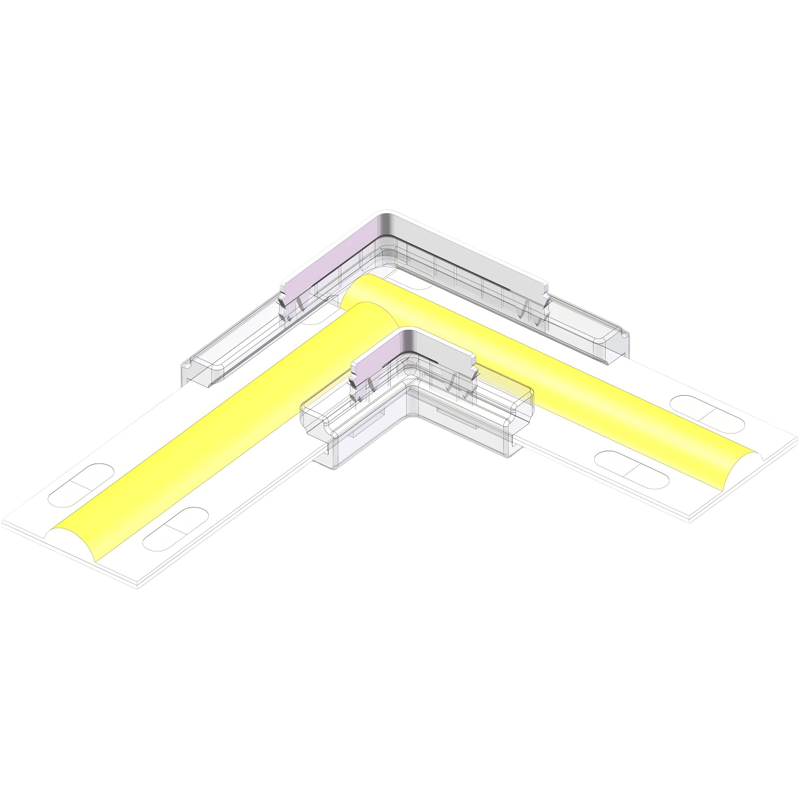

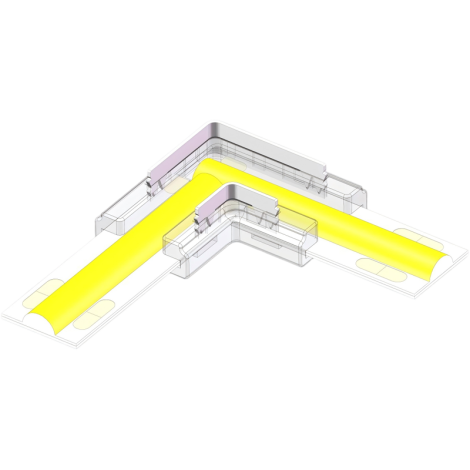

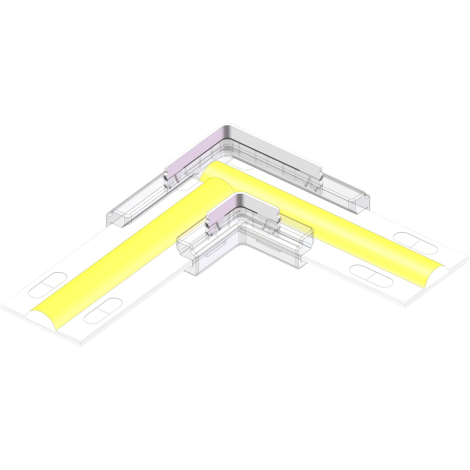

8mm/10mm L-Shaped 2 Pin COB Free Solder Led Strip Connector
Product Model: HR-S-COB-2PIN-10MM-L
Features:
- L-Shaped Transparent PC connector for high density SMD and COB strip
- 2 Pin, 8mm/10mm, IP20
- 0-36V, 5A
- PCB Compatible: thickness 0.25-0.35mm
- Wire Compatible: 0.35-0.5mm², 20-22AWG, OD<1.6-1.8mm
- Strip Compatible: 5mm 2pin IP20 COB & Some SMD strip
- Anti-fire UL-94-V2
Specification:
| COB LED Strip Connector | |
|---|---|
| Product Model | HR-S-COB-2PIN-10MM-L |
| Connector Type | COB Strips |
| Color | White |
| Pin | 2pin |
| IP Rating | IP20 non-waterproof |
| Material | PVC/ PU |
| Single-ended outlet | 15cm |
| max-current | 4A |
| PCB width | 8mm/10mm |
| Packaging Details | 100PCS/Bag |
| Connector Type | / |
| Application | Led lighting |
