296D High CRI LED Strip 110V 4000K – Neutral White, 80lm/W
Part Number: LM-FCOB-296L-110V-10W5-W80-C12500-CRI80-4000K
Features:
- High density, uniform ligh with no dotting
- Ultra slim with 8mm width
- 296 LEDs/m, High CRI >80, High Brightness and Efficiency
- High Temperature Resistance, Long Lifetime
- 2 Year Warranty
- Ideal for commercial lighting, office spaces, retail environments, educational facilities and residential applications
- Custom Solutions: The LED density, Color, Length, Width, Logo all could be customized.

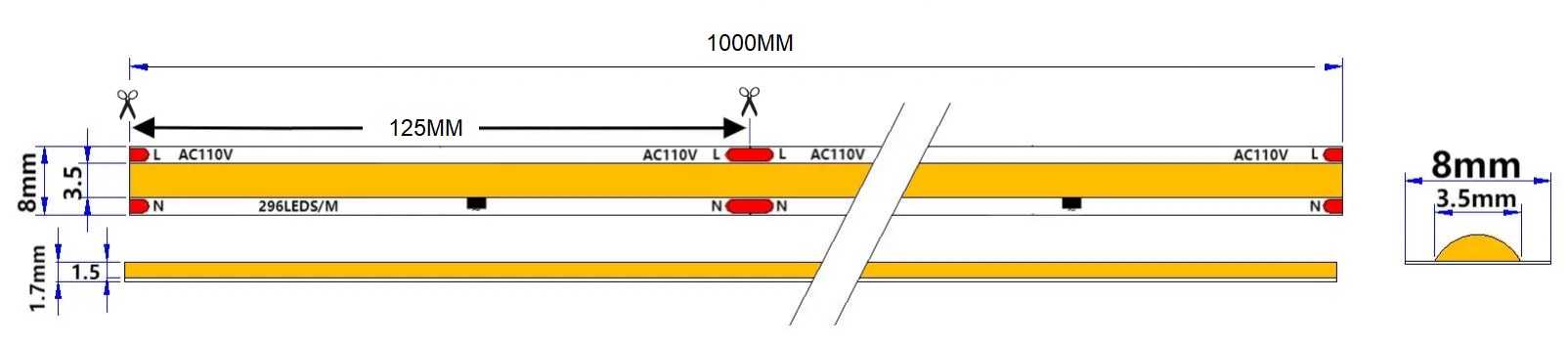

Mechanical Dimensions:
Specification:
| COB LED Strip Product Specifications | |
|---|---|
| Part Number | LM-FCOB-296L-110V-10W-W80-C12500-CRI80-4000K |
| Product Type | COB LED Strips |
| Color Temperature | 4000K |
| Light Efficiency | 80lm/W |
| IP Rating | IP20 non-waterproof |
| LED Density | 296LEDs/M |
| Power Consumption | 10W/Meter |
| Input Voltage | 110V |
| Width | 8mm |
| CRI (Ra) | 80 |
| Cuttable Length | 125mm |
| Dimensions | 5 Meters |
| Custom Accepted | LED Density, Width, CRI, Luminous Flux, Color, Logo could be customized |
Available Configurations:
-
Bare Board Reel:
-
Length:30m/roll (15 strips included) -
Connection:None (Requires wiring) -
Backing:None -
Packaging:Bare reel
-
-
Pre-wired - Non-WP:
-
Length:10m/roll -
Connection:Pre-wired (1 end) -
Backing:White thermal adhesive -
Waterproof:Non-waterproof (IP20) -
Packaging:White reel + Silver anti-static bag
-
-
Pre-wired - Spray WP:
-
Length:10m/roll -
Connection:Pre-wired (1 end) -
Backing:White thermal adhesive -
Waterproof:Spray coated waterproof (IP65) -
Packaging:White reel + Silver anti-static bag
-
-
PVC Jacketed - Long Reel:
-
Length:100m/roll -
Connection:None (Includes 1 solderless connector) -
Backing:Red acrylic adhesive -
Waterproof:PVC jacketed waterproof (IP67) -
Packaging:Individually boxed (Carton: 32x32x13cm | Reel: 31x31x13cm | Wt: ~4.4kg)
-
