0.5M 840D RGB COB LED Board 14W/M 24V / RA90 Cuttable 50mm Units | 10mm PCB
Part Number: LM-SCOB-840L-24V-14W-W100-C5000-RGB
Features:
- High density, uniform ligh with no dotting
- Ultra slim with 10mm width
- 840 LEDs/m, High Brightness and Efficiency
- High Temperature Resistance, Long Lifetime
- 2 Year Warranty
- Ideal for architectural lighting, curved surfaces, event decorations, display cases and creative lighting installations
- Custom Solutions: The LED density, Color, Length, Width, Logo all could be customized.

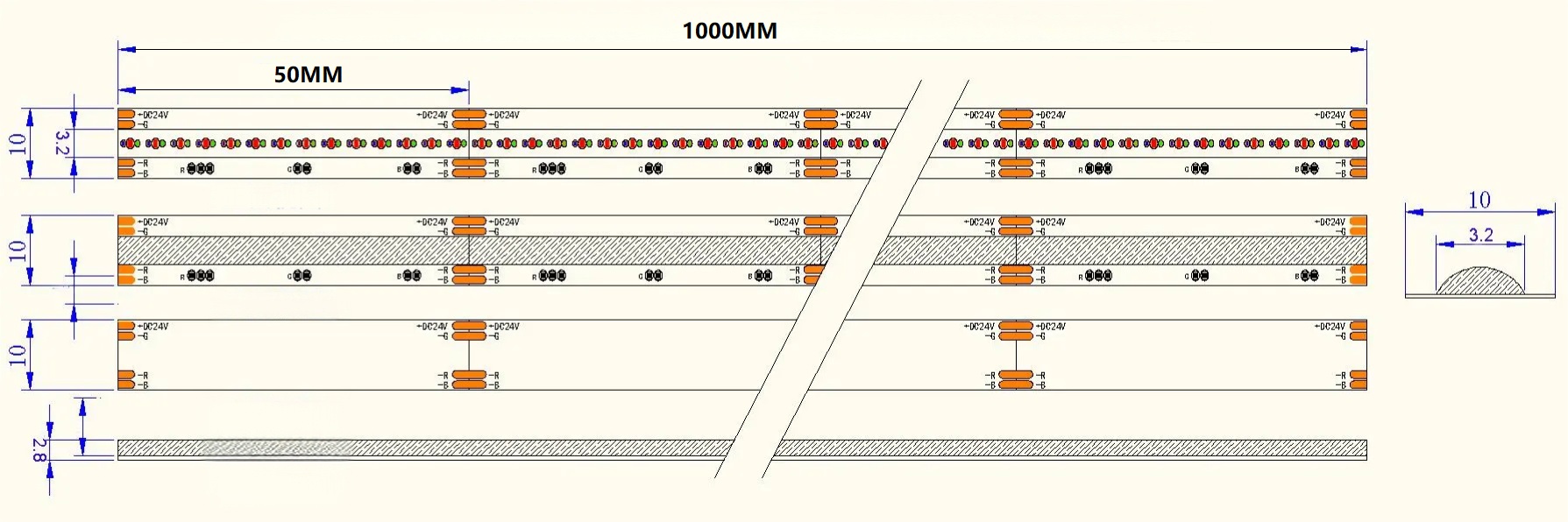

Mechanical Dimensions:
Specification:
| COB LED Strip Product Specifications | |
|---|---|
| Part Number | LM-SCOB-840L-24V-14W-W100-C5000-RGB |
| Product Type | COB LED Strips |
| Color Temperature | RGB |
| Light Efficiency | / |
| IP Rating | IP20 non-waterproof |
| LED Density | 840LEDs/M |
| Power Consumption | 14W/Meter |
| Input Voltage | 24V |
| Width | 10mm |
| CRI (Ra) | / |
| Cuttable Length | 50mm |
| Dimensions | 5 Meters/10 Meters |
| Notes | Solder Pad Layout:Single-Side Soldering (All 4 Pads on Front) |
| Custom Accepted | LED Density, Width, CRI, Luminous Flux, Color, Logo could be customized |
